Equipment Maintenance

Your gear is only as good as you keep it. Clean equipment is the single biggest separator between consistent splicers and frustrated ones.

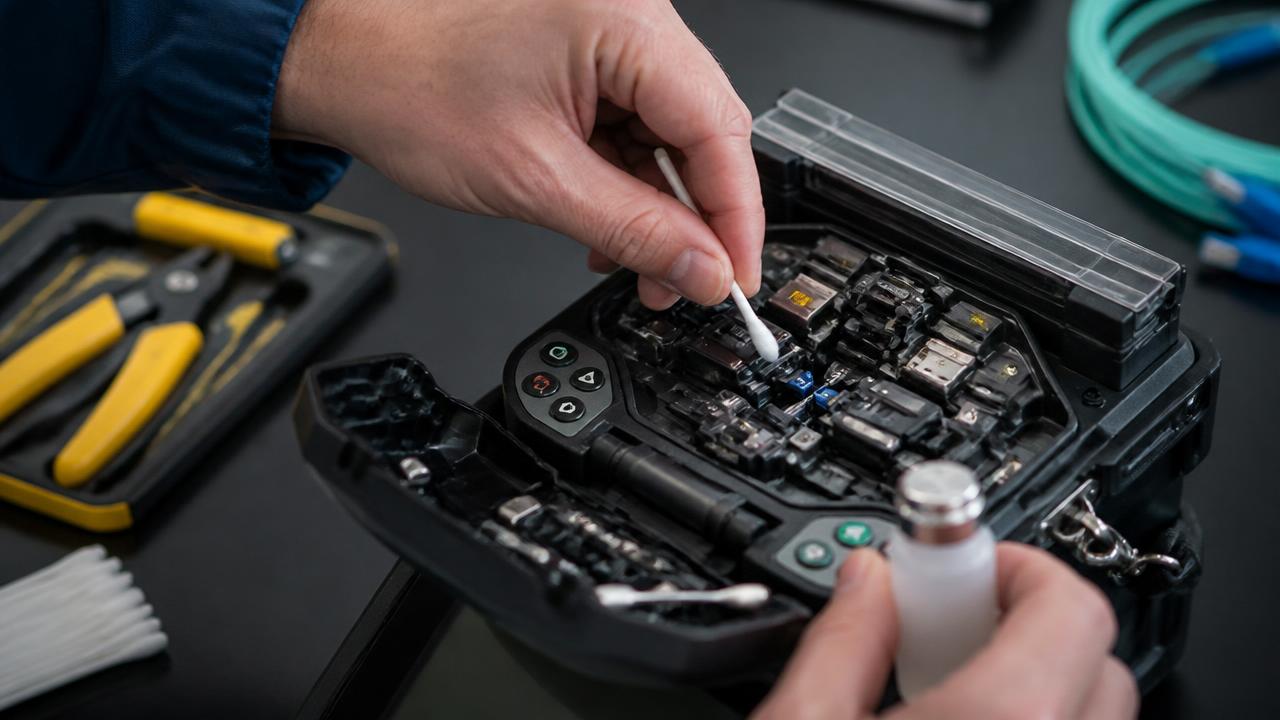

Technician cleaning a fusion splicer's V-grooves and electrode area with a swab and alcohol.
Tech cleaning splicer V-grooves and electrodesFuture media: maintenance close-up.
Fusion Splicer

Wipe down the case, check the electrodes for wear, and run electrode stabilization or replacement at the manufacturer's recommended interval. Update firmware when the manufacturer releases it.

V-grooves

Use a fresh fiber-tipped cleaning stick with 99% IPA. A single piece of debris in the V-groove will offset the fiber and ruin every splice after it.

Cameras / Mirrors

Inspect the splicer's internal optics with each cleaning cycle. Smudges on the camera path produce false alignment errors.

Cleaver

Rotate or replace the blade on schedule. Clean the rubber pads and clamps. A precision cleaver is a precision tool — treat it like one.

Fiber Holders

Coating residue and shards build up in the clamps. Clean them with IPA and a wipe every session, not once a month.

Battery & Case

Run batteries through full cycles occasionally and keep the splicer case dry and dust-free. Most field failures start with neglected hardware.

◆Pro Tip
End every shift with a five-minute splicer cleaning. Doing it daily takes less time than the one bad splice you'll otherwise chase tomorrow.
